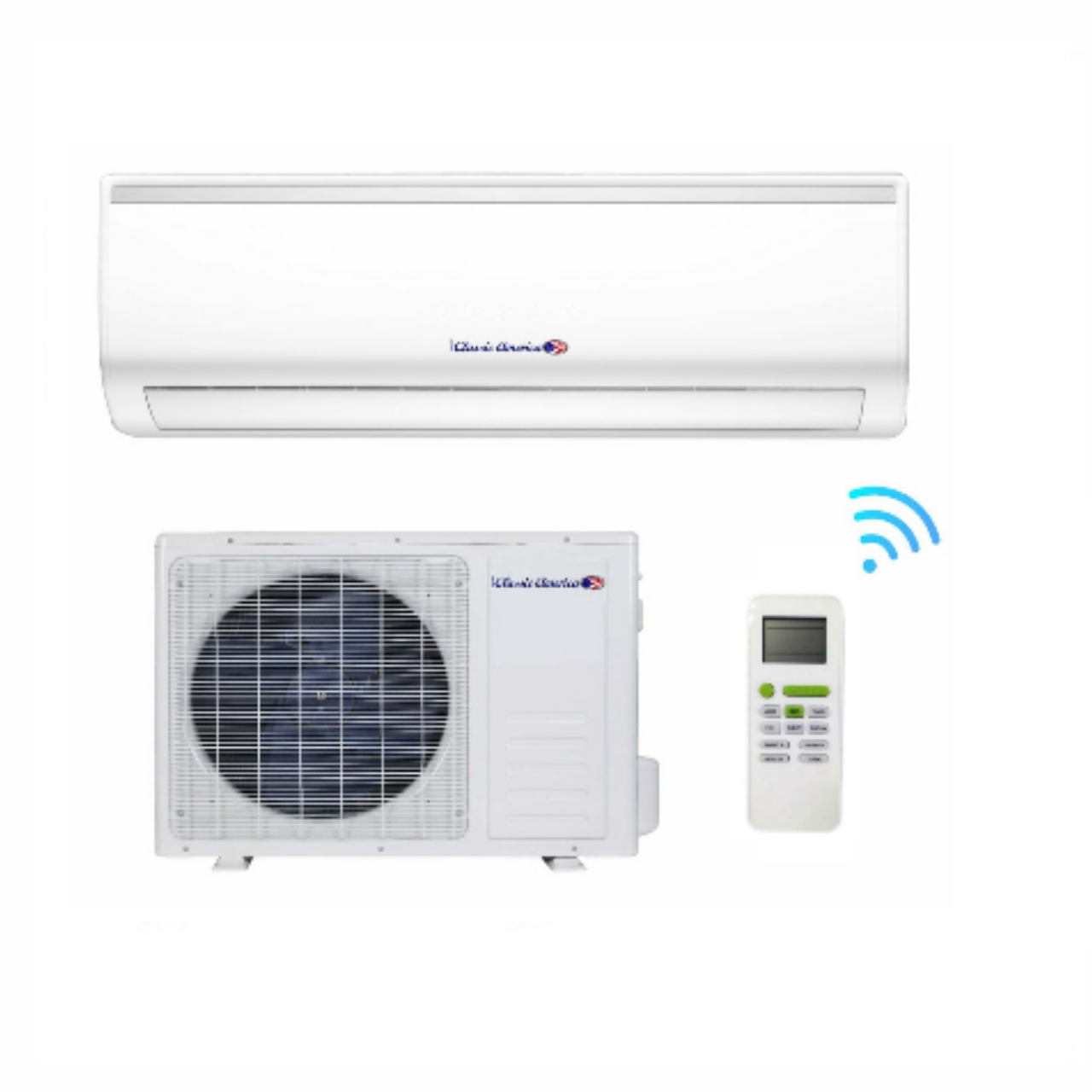

Classic America WiFi Ductless Wall Mount Mini Split Inverter Air Conditioner with Heat Pump, Full Set (12000 BTU 20 SEER 120VAC)





Vtronix Classic America 12000 BTU, 20 SEER, 115V/60Hz, R410A, Wifi capable, Heat Pump with 5M copper lineset

SKU:MSC-12HAC1

UPC:856739008035



If you are looking to purchase the perfect mini split, look no further. This 12,000 BTU (20 SEER) Mini Split Air Conditioner/Heat Pump that can cool, heat, dry or simply fan your room now has WiFi capabilities. The packaging includes Indoor Unit- Air Handler, Outdoor Unit with a GMCC Compressor, LCD Remote Control plus a FREE installation kit with a 16 ft (5 m) lineset, and installation is easy with a licensed and professional contractor. Low temperature PTC Strip allows unit to operate in heating down to -13F outdoor temperature.

Installation Guide
Remote Manual
User Guide
Energy Guide Label

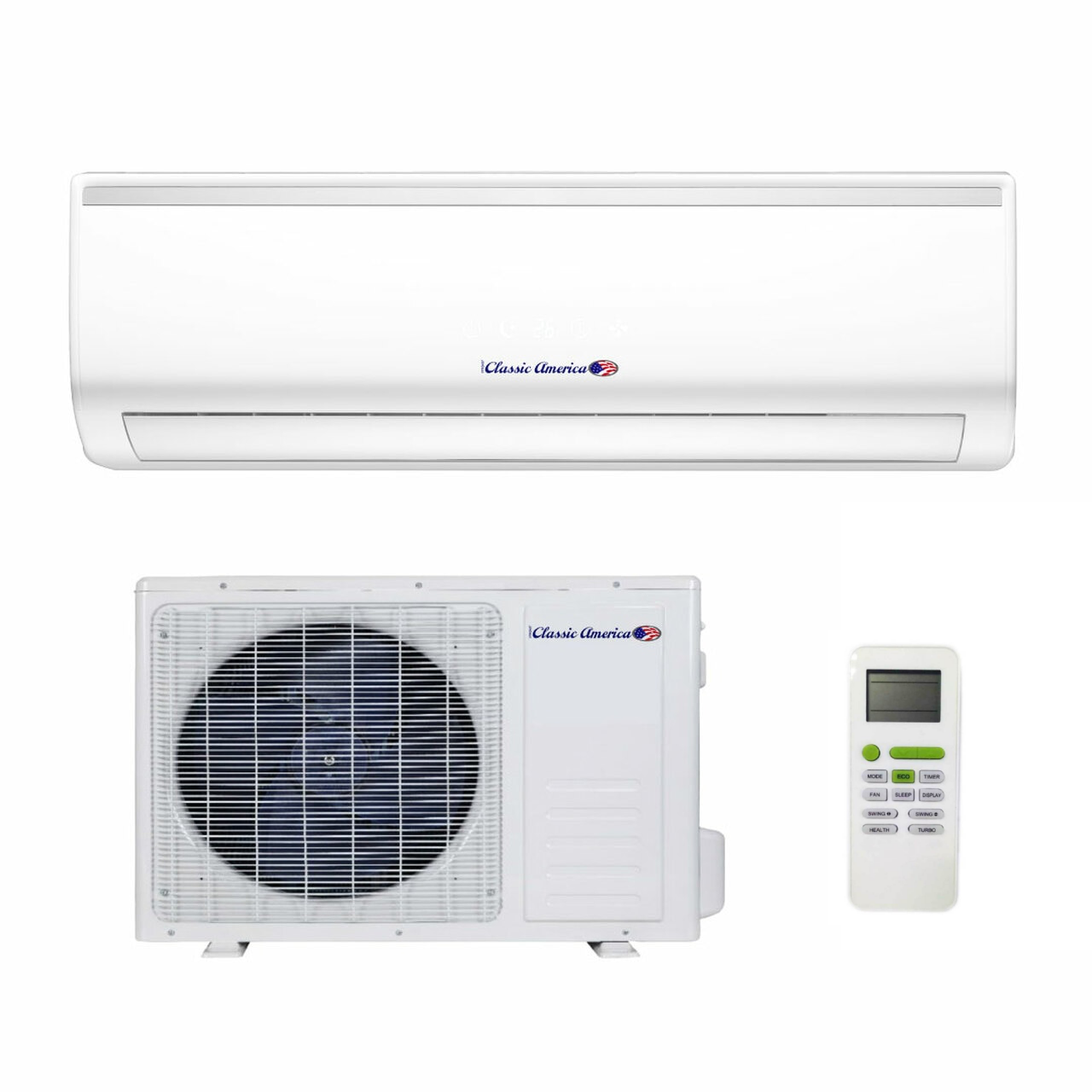

Classic America 24000 BTU, 18 SEER, 230V/60Hz, R410A, Wifi capable, Heat Pump with 5M copper lineset





Vtronix Classic America 24000 BTU, 18 SEER, 230V/60Hz, R410A, Wifi capable, Heat Pump with 5M copper lineset

SKU:MSC-24HAC2

UPC:856739008059



If you are looking to purchase the perfect mini split, look no further. This 24,000 BTU (18 SEER) Mini Split Air Conditioner/Heat Pump that can cool, heat, dry or simply fan your room now has WiFi capabilities. The packaging includes Indoor Unit- Air Handler, Outdoor Unit with a GMCC Compressor, LCD Remote Control plus a FREE installation kit with a 16 ft (5 m) lineset, and installation is easy with a licensed and professional contractor.
Working in 5 modes of standard operation: Auto, Cool, Heat, Fan and Dry. There are also plenty of preset features programmed into it. The Automatic Switch Over mode allows an automated operation. Timer function powers off the mini split after a period of time, saving you money. Sleep mode mirrors the bodies naturally changing temperature levels while we sleep, aiding an uninterrupted night of sleep. In case of a temporary power outage Auto Restart function restarts the system to continue running the same way after power is returned to the unit. Finally, the air louver automatically swings sending airflow, in three speed varieties, throughout a room rather than in a single direction. This unit offers energy savings of up to 30% compared to other conventional mini-splits. Temperature-monitor thermistor protection device comes installed in the evaporator coil, that shuts off compressor if the coil temperature reaches a temperature of 2C, protecting unit from loss of charge, coil freeze up and a dirty-filter operation. Low temperature PTC Strip allows unit to operate in heating down to -13F outdoor temperature.

User and Installation Manual
Wifi Manual
Energy Guide Label

Classic America WiFi Ductless Wall Mount Mini Split Inverter Air Conditioner with Heat Pump, Full Set (12000 BTU 20 SEER 120VAC)





Vtronix Classic America 9000 BTU, 23 SEER, 115V/60Hz, R410A, Wifi capable, Heat Pump with 5M copper lineset

SKU:MSCT-09HAC1

UPC:856739008202



The installation of a Classic America ductless mini split heat and air conditioner unit is easily accomplished with a licensed HVAC technician. Classic America mini split-system air conditioners heat or cool a room in a house quietly, effectively and most important: efficiently. Included with the split system ac is a wireless remote controller which allows the user to select among 5 operating modes; Auto, Cool, Heat, Dry and Fan. The Automatic Switch Over mode allows an automated operation. The mini split system comes with WiFi Control compatible with Alexa. You can control from any smart device. (WiFi manual included in the indoor mini split ac unit).
Timer function powers off the mini splits heating and cooling after a period of time, saving you money. The indoor mini split heat pump display can also be dimmed for nighttime sleeping rooms. In case of a temporary power outage Auto Restart function restarts the split system air conditioner to continue running the same way after power is returned to the mini split unit. Finally, the air louver automatically swings sending airflow throughout a room rather than in a single direction. FEATURES LIST: Sleep Function, Timer, Automatic Air Swing, Automatic Switch Over, Three Speed Fan, Energy Savings of up to over 30% compared to conventional minisplit air conditioners, Innovative temperature-monitor thermistor protection device that causes freeze prevention. Low temperature PTC Strip allows the ac unit split system to operate in heating down to -13F outdoor temperature.

Classic America WiFi Ductless Wall Mount Mini Split Inverter Air Conditioner with Heat Pump, Full Set (12000 BTU 20 SEER 120VAC)





Vtronix Classic America 24000 BTU, 20 SEER, 230V/60Hz, R410A, Wifi capable, Heat Pump with 5M copper lineset

SKU:MSCT-24HAC2

UPC:856739008196



The installation of a Classic America ductless mini split heat and air conditioner unit is easily accomplished with a licensed HVAC technician. Classic America mini split-system air conditioners heat or cool a room in a house quietly, effectively and most important: efficiently. Included with the split system ac is a wireless remote controller which allows the user to select among 5 operating modes; Auto, Cool, Heat, Dry and Fan. The Automatic Switch Over mode allows an automated operation. The mini split system comes with WiFi Control compatible with Alexa. You can control from any smart device. (WiFi manual included in the indoor mini split ac unit).
Timer function powers off the mini splits heating and cooling after a period of time, saving you money. The indoor mini split heat pump display can also be dimmed for nighttime sleeping rooms. In case of a temporary power outage Auto Restart function restarts the split system air conditioner to continue running the same way after power is returned to the mini split unit. Finally, the air louver automatically swings sending airflow throughout a room rather than in a single direction. FEATURES LIST: Sleep Function, Timer, Automatic Air Swing, Automatic Switch Over, Three Speed Fan, Energy Savings of up to over 30% compared to conventional minisplit air conditioners, Innovative temperature-monitor thermistor protection device that causes freeze prevention. Low temperature PTC Strip allows the ac unit split system to operate in heating down to -13F outdoor temperature.

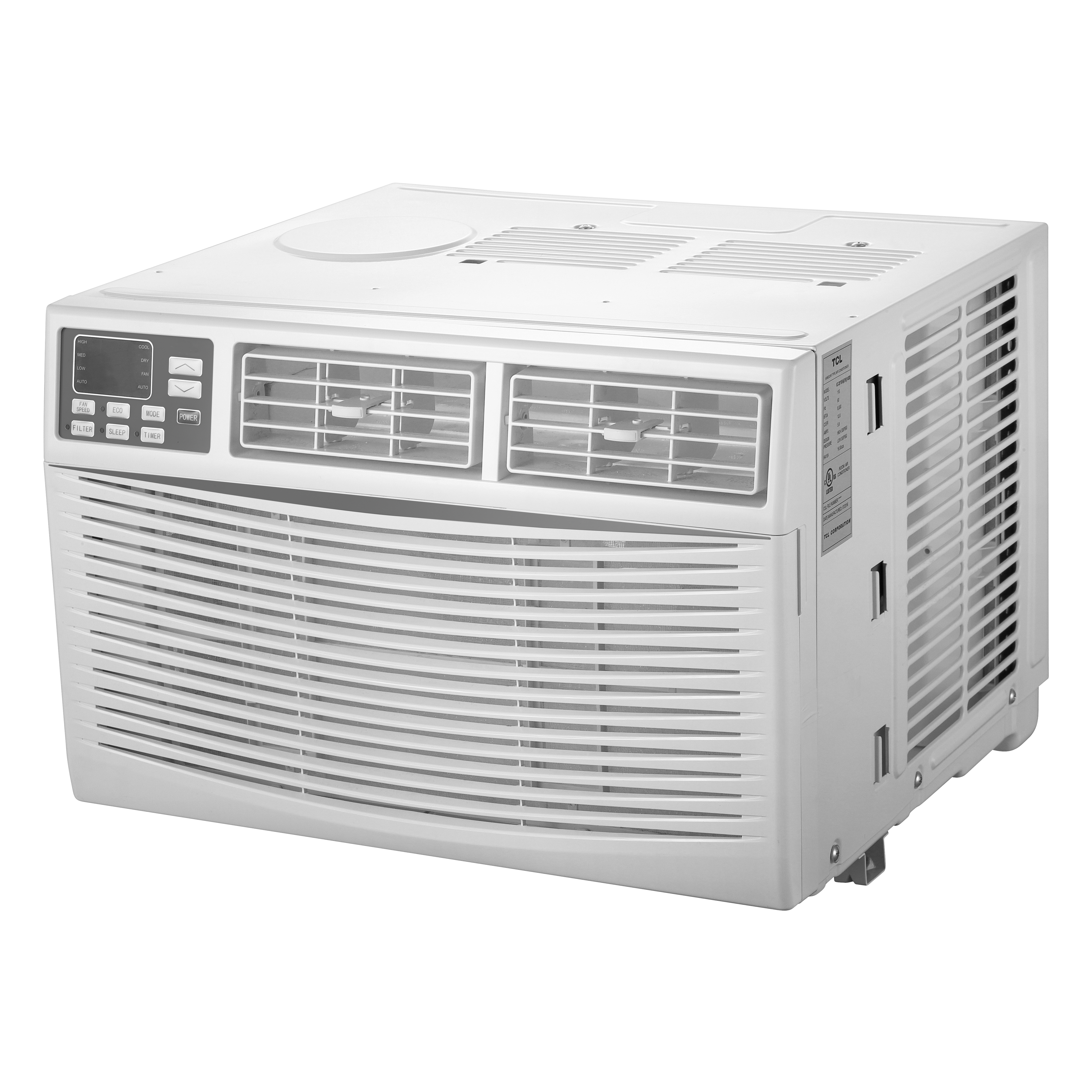

8,000 BTU  Window Air Conditioner





Vtronix Classic America 8000 BTU, 12 CEER, 115V/60Hz, R32, Wifi capable, Window Air Conditioner

SKU:TWC-08CRD1/LOU-CA

UPC:856739008066



If you are looking to purchase the perfect window air conditioner, look no further. This 8,000 BTU (12 CEER) Window Air Conditioner can cool, dry or simply ventilate your room. Left the room (or the house) and forgot to turn it off? Need the room to be cool when you get home but you don’t know at what time that will be? It got really hot during the day and you didn’t turn it on for your at-home pet?? No worries, you can control it from your smartphone via Wi-Fi. The unit has 4 modes of standard operation: Auto, Cool, Fan and Dry. There are also plenty of preset features programmed into it. The Automatic Switch Over (AUTO) mode allows the unit to pick the mode based on room temperature. The Timer function powers off the unit after a period of time, saving you money, or powers on the unit after a period of time at your desired temperature. Sleep mode mirrors the body’s naturally changing temperature levels while we sleep, allowing an uninterrupted night of sleep with energy savings! Worried what happens to your pet in case of a temporary power outage? the Auto Restart function restarts the unit to continue running the same way after power is returned to the unit. Maintenance concerns? It comes with a washable filter and a Filter Clean alert after 500 hours of operation.
This unit is designed to be installed in a standard double-hung window with a window width between 26" and 36". The Lower Sash (the lower part of the window that moves up and down) must allow for 14.5" of vertical clearance when open. 120V three prong AC plug must be within 6.5 ft of unit (length of the power cord). Unit will draw 8A maximum.

User and Installation Manual
Wifi Manual
Energy Guide Label

12,000 BTU  Window Air Conditioner for double hung windows with Wi Fi capability





Vtronix Classic America 12000 BTU, 12 CEER, 115V/60Hz, R32, Wifi capable, Window Air Conditioner

SKU:TWC-12CRD1/LOU-CA

UPC:856739008073



If you are looking to purchase the perfect window air conditioner, look no further. This 12,000 BTU (12 CEER) Window Air Conditioner can cool, dry or simply ventilate your room. Left the room (or the house) and forgot to turn it off? Need the room to be cool when you get home but you don’t know at what time that will be? It got really hot during the day and you didn’t turn it on for your at-home pet?? No worries, you can control it from your smartphone via Wi-Fi. The unit has 4 modes of standard operation: Auto, Cool, Fan and Dry. There are also plenty of preset features programmed into it. The Automatic Switch Over (AUTO) mode allows the unit to pick the mode based on room temperature. The Timer function powers off the unit after a period of time, saving you money, or powers on the unit after a period of time at your desired temperature. Sleep mode mirrors the body’s naturally changing temperature levels while we sleep, allowing an uninterrupted night of sleep with energy savings! Worried what happens to your pet in case of a temporary power outage? the Auto Restart function restarts the unit to continue running the same way after power is returned to the unit. Maintenance concerns? It comes with a washable filter and a Filter Clean alert after 500 hours of operation.
This unit is designed to be installed in a standard double-hung window with a window width between 23" and 36". The Lower Sash (the lower part of the window that moves up and down) must allow for 16" of vertical clearance when open. 120V three prong AC plug must be within 5.9 ft of unit (length of the power cord). Unit will draw 10.2A maximum.

User and Installation Manual
Wifi Manual
Energy Guide Label
