Description
- SUPERIOR PERFORMANCE HEAT PUMP: Range 11,500 to 12,000 BTU/hour of heating or cooling capacity with industry-leading 17 SEER2 rating and 9.5 HSPF2 efficiency. Ideal coverage for spaces up to 550 square feet.
- WiFi AND ALEXA COMPATIBILITY: Ductless mini split heat pump/air conditioner features advanced WiFi control and Alexa compatibility, allowing seamless operation through smart devices. Complete Wi-Fi setup manual included with the indoor unit for easy configuration and smart home integration.
- COMPLETE INSTALLATION KIT: Includes 16-foot insulated copper refrigeration tubing, power cables, interconnecting cables, pipe wrap, and wall sleeve. Professional HVAC installation recommended for optimal performance.
- SMART COMFORT WITH VERSATILE MODES: Innovative features include Auto Restart, 5 operating modes (Auto, Heater, Cool, Dry, Fan), programmable timer, and automatic air swing for comprehensive room coverage. Display dimming capability perfect for bedroom installation.

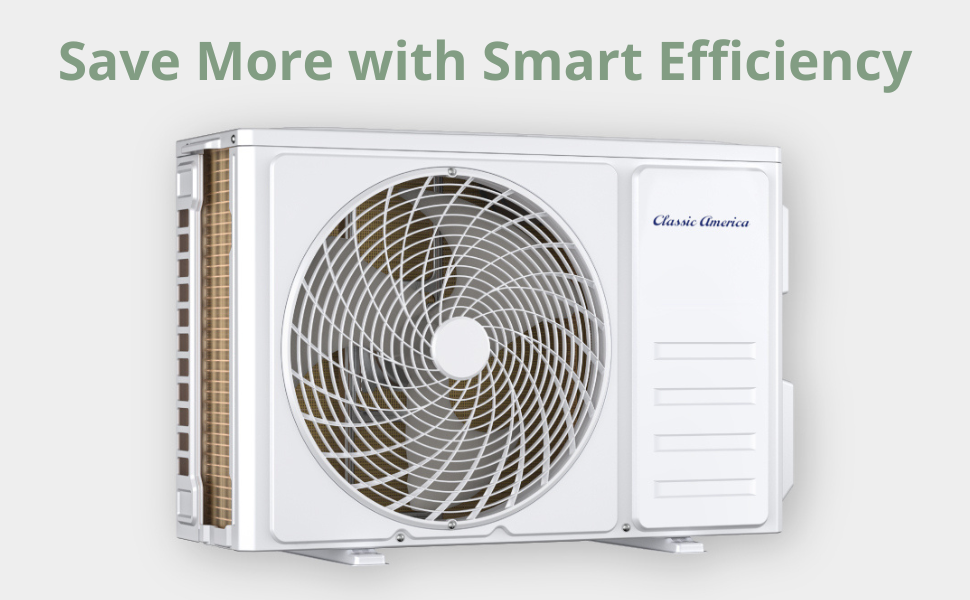

- EFFICIENCY IN A SLEEK AND MODERN DESIGN: Classic America mini split ac/heating system provides the highest degree of quality, efficiency and performance in a modern and simple package.
- EXTRA ENERGY EFFICIENT: This mini-split heat pump operates using 110-120 VAC power. ETL approved system ensuring reliable performance and safety compliance.
- EXTRA REMOTE: Temperature & Humidity Display Remote. (Available Upon Registration)
ERROR SIGNALS THAT DISPLAY ON YOUR UNIT
Understanding the error codes that display on the Indoor Unit.
E0 - (Common at Start Up) - Lost Communication between Indoor and Outdoor Units (if at initial startup, check for miswiring or broken or disconnected Cable #1, Leftmost of 3, may be labelled differently)
E1 - Indoor Temperature Sensor Fault
E2 - Indoor Pipe Temperature Sensor Fault
E3 - Outdoor Pipe Temperature Sensor Fault
E4 - Refrigerant System Leakage or Fault
E6 - Malfunction of the Indoor Fan Motor
E7 - Outdoor Air Temperature Sensor Fault
E8 - Outdoor Discharge Temperature Sensor Fault
E9 - Outdoor IPM Module Fault
EA - Outdoor Current Detect Fault
EE - Outdoor PCB EEPROM Fault
EF - Outdoor Fan Motor Fault
EH - Outdoor Suction Temperature Sensor Fault
FX - Advanced Troubleshooting Codes - Contact Tech Support for Assistance
P4 - Compressor Overload (If at initial startup, check that refrigerant valves are open)
PA - Indoor Unit and Outdoor Unit have different modes or Indoor Unit's water safety float switch has been triggered due to a backed up drain.
FEATURES & SPECS
|
Capacity |
1 Ton |
|
Cooling Power |
12000 British Thermal Units |
|
Additional Features |
Remote Controlled, WiFi Enabled, Extra Remote showing Temperature and Humidity, Heating And Cooling Function |
|
Seasonal Energy Efficiency Ratio (SEER) |
17 SEER2 |
|
Voltage |
110 Volts |
|
Noise |
34 dB |
|
Power Source |
Corded Electric |
|
Form Factor |
Mini-Split |
|
Control Method |
App, Remote, Touch, Voice |
|
Inverter Type |
Has Inverter |
|
Controller Type |
Remote Control, App Control, Touch Control |
|
Efficiency |
High |
|
Installation Type |
Split System |
|
Compressor Type |
Inverter Compressor |
|
Is Product Cordless |
No |
|
Is Outdoor Unit Required |
Yes |
|
Refrigerant |
R32 |
|
Air Conditioner Application |
Residential and Commercial |
ITEM INFO
|
Brand Name |
Classic America |
|
Model Number |
MSC-R32-12CHSA1 |
|
UPC |
856739008301 |
|
Item Weight (Indoor Unit) |
27 lbs |
|
Item Weight (Outdoor Unit) |
90 lbs |
The gas line diameter is 3/8 inches with a nut diameter of 5/8 inches. The liquid line diameter is 1/4 inches with a nut diameter of 7/16 inches.
